flame arrestors

Flame arrestors designed and tested according to EN.12874 standard to be installed in classified areas. In the filling operation of tanks breather valves or free vent discharge vapours in line flame arrester that can ignite for atmospheric causes. The tank should be protected to to prevent propagation of flames in its interior. The end of line deflagration flame arrestor that can be installed between the tank and the breather valve or the free vent will prevent the transmission of fire inside the tank.
Lupi Augusto Flame arrestors can
– quench the flames
– dissipate the heat generated by the flames
– resist to overpressure generated by flame front

in line deflagration flame arrester 20

END OF LINE FLAME ARRESTOR

MODEL 421.1 End of line deflagration flame arrestor for group IIA Gas. Project pressure  0.5 Bar, project temperature 120°C, max working temperature 60°C.

The flame arrestor element is done with one AISI316 stainless steel EN12874 filter. The filter is inserted into an aluminium body and can be removed for cleaning and maintenance.
um body, and SS316L elements from 2″  a 12”. Flanged Ansi 150#FF or UNI PN10/16 FF connections.

ATEX_logoCE_logoEN12874_logo

SERIE 426.1 End of line deflagration flame arrestors for group IIA gas with weatherhood.

MODEL 428.2 End of line deflagration flame arrestors for group IIA gas B.W. Project pressure 10Bar, project temperature -120/210°C, working temperature 60°C. Flame arrestor element is done with one AISI316 stainless steel EN.12874 filter inserted in AISI304/AISI316 stainless steel or carbon steel body. The filter can be easily removed for cleaning and maintenance. Available from 2” a 12”, B.W. connections.

MODEL 431.2 End of line deflagration flame arrestors for group IIA gas. Project pressure 0.5Bar, project temperature -20/120°C, working temperature 60°C. Flame arrestor element is done with one AISI316 stainless steel EN.12874 filter that can be removed for maintenance. SS304L or SS316L body and SS316L elements from 2” to 12”. Aluminium loose ANSI 150#RF or UNI PN10/16FF flanges. This flame arrestor in specially designed to be used with model 300.2 breather valves.end of line flame arrestor 2

MODEL 432.2 End of line deflagration flame arrestors for group IIA gas. Project pressure 0.5Bar, project temperature -20/120°C, working temperature 60°C. Flame arrestor element is done with one AISI316 stainless steel EN.12874 filter that can be removed for maintenance. SS304L or SS316L body and SS316L elements from 2” to 12”. SS304L/SS316L ANSI 150#RF or UNI PN10/16FF flanged connections.

MODEL 433.2 End of line deflagration flame arrestor for group IIA gas. Project pressure 0.5Bar, project temperature -20/120°C, working temperature 60°C. Flame arrestor element is done with one AISI316 stainless steel EN.12874 filter that can be removed for maintenance. SS304L or SS316L body and SS316L elements from 2” to 12” loose aluminium ANSI 150#RF or UNI PN10/16FF flanged connections.

MODEL 434.2 End of line deflagration flame arrestor for group IIA gas with weatherhood. Project pressure 0.5Bar, project temperature -20/120°C, working temperature 60°C. ANSI 150#RF or UNI PN10/16FF SS304/SS316 flange.

IN LINE FLAME ARRESTORS
The in line flame arrestors can be installed into a line at a maximum distance from the ignition source of 50 x nominal diamater. They are specially designed to resist to the pressure caused by the deflagration into the non protected side of the the line.

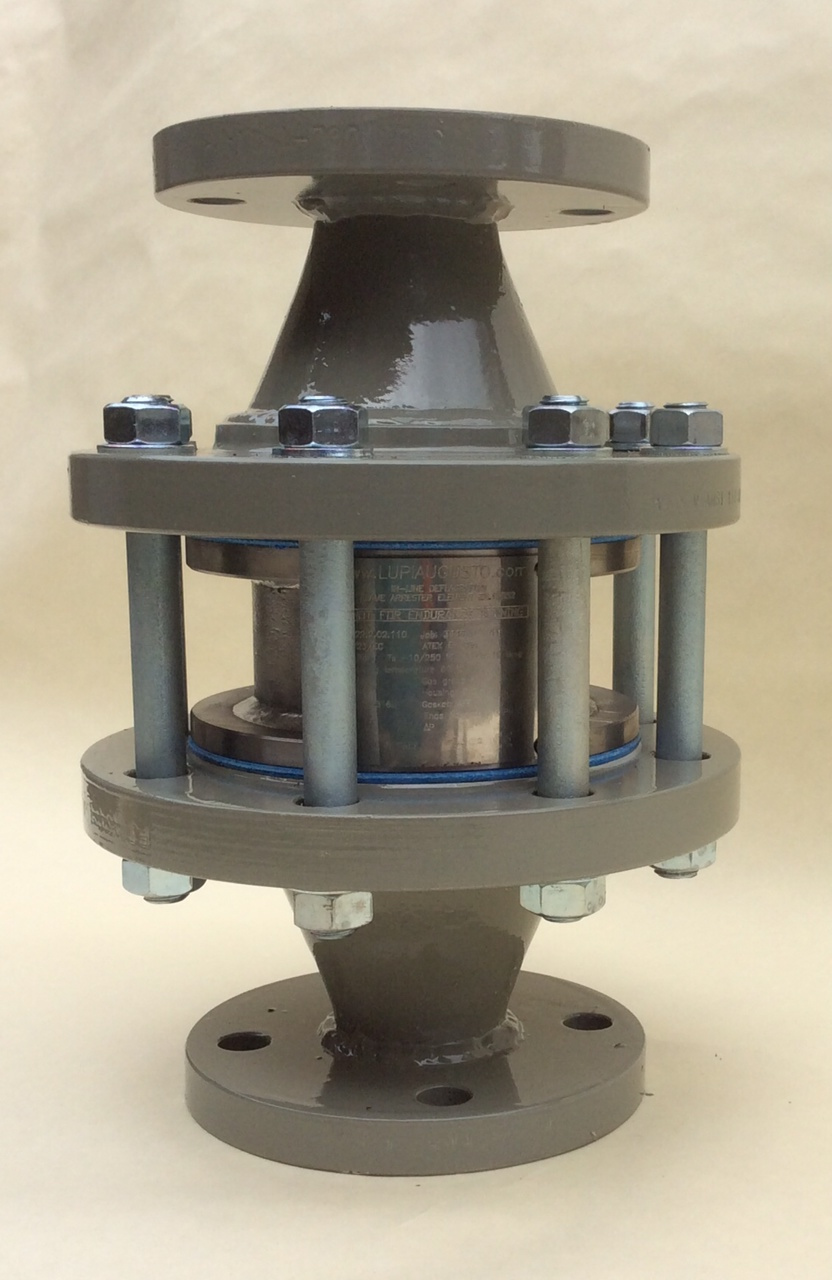

MODEL 422.2 In line deflagration flame arrestors for group IIA gas. Project pressure 10 or 77.1 Bar, project temperature  -10/250°C for carbon steel and stainless steel. Working temperature 60°C. PED certification.Flame arrestor element is done with one AISI316 stainless steel EN.12874 filter inserted in AISI304/AISI316 stainless steel or carbon steel body. The filter can be easily removed for cleaning and maintenance. Available from 2” to 24” with ANSI 150#RF flanged connections.

CE_logoATEX_logoEN12874_logoPED_logo
